Cellphone Signal Booster 3G & 4G – 300 sq.m. (Power Line)

(Vodacom MTN)

Cellphone Signal Booster 3G & 4G – 300 sq.m. (Power Line)
  • Cellphone Signal Booster 3G & 4G – 300 sq.m. (Power Line)
  • Cellphone Signal Booster 3G & 4G – 300 sq.m. (Power Line)
  • Cellphone Signal Booster 3G & 4G – 300 sq.m. (Power Line)
  • Application:
    2 Band
  • Coverage:
    Up to 300 sqm
  • Ideal For:
  • Provider:
  • Frequency:
    1800/2100 MHz
  • Data:
    3G & 4G
Free Shipping In SA Delivery time: 3-5 Business Days
Benefits and Features:
  • Instant Signal Boost of up to 5 bars
  • CE & RoHS ISO Certified Product
  • Easy Installation
  • Fast Data Download
  • 2 -Year Warranty

R 11400

Was R 11400. Save R 11400

Units Sold: 78

Free Shipping

Overview

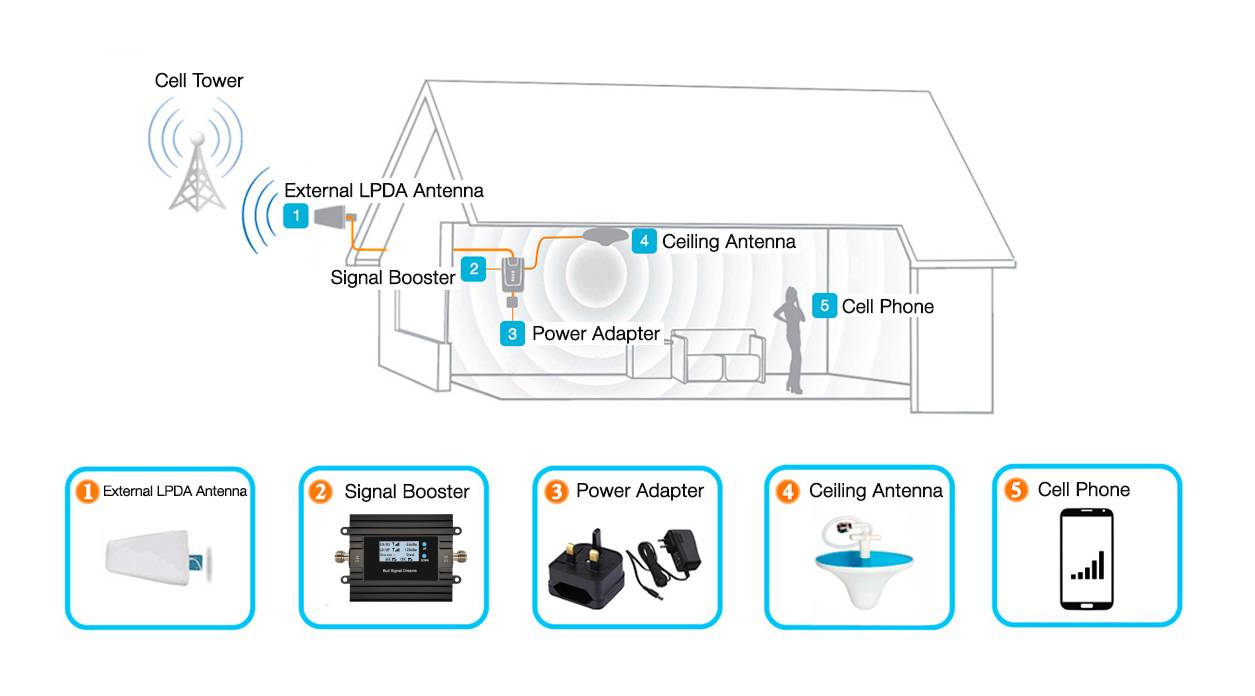

Kit includes:
  • 1x repeater
  • 1x outdoor LPDA antenna
  • 1x indoor ceiling antenna
  • 1x power adapter
  • 1x 15 meters cable
  • 1x 5 meters cable
Price Match Guarantee

Our Dual Band model will serve you well if you are a 3G & 4G user looking for 2100 MHz and 1800 MHz signal amplification support with poor outside coverage. It is a dual band repeater that provides signal enhancement in 300 sq. m. range.

The signal booster can be installed in less than 15 minutes with our full installation kit and simple directions.  You will be up and running in no time at all!  The attractive design of our signal booster is paired with “5-bar” signal capability in urban or rural areas throughout the entire South Africa. Our 24/7 technical support staff is made up of trained professionals who are there to assist you with whatever you need.  Our signal boosters and excellent service are just what you need and is worth every penny!

  • Technical Sheet
  • Coverage
    Up to 300 sqm
  • Use
    Medium home
    Medium office
  • Operator
    Vodacom (2G+3G + 4G)
    MTN (2G+3G + 4G)
    Telcom (2G)
    Cell C (2G, 3G ,4G)
  • Frequency
    1800/2100 MHz
  • Number of simultaneous users
    150
  • Up-link
    1710-1785MHz
    1920-1980MHz
  • Down-link
    1805-1880MHz
    2110-2170MHz
  • Voltage
    AC90-264V,output DC 5V / 3A
  • Dimensions
    190*180*20 mm.
  • Weight
    3.5 kg
  • Max Gain
    ≥ 70dB
  • Max .Output Power
    Up link :≥ 20dBm
  • MGC ( Step Attenuation )
    ≥ 31dB / 1dB step
  • Automatic Level Control
    ≥ 20dB
  • Spurious Emission & Output inter-modulation
    • GSM Meet ETSI TS 151 026 V 6.1.0
    • WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 )
    • CDMA Meet IS95 & CDMA2000
  • Gain Flatness
    • GSM & CDMA
      Tpy≤ 6dB(P-P); DCS,PCS ≤ 8dB(P-P)
    • WCDMA
      ≤ 2dB/ 3.84MHz,Full Band ≤ 5dB(P-P)
  • Noise Figure
    ≤ 5dB
  • VSWR
    ≤ 2.0
  • Group Delay
    ≤ 1.5μs
  • Frequency stability
    ≤ 0.01ppm
  • Spurious Emission & Output inter-modulation
    • GSM Meet ETSI TS 151 026 V 6.1.0
    • WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 )
    • CDMA Meet IS95 & CDMA2000
  • WCDMA System
    • Spurious Emission Mask
      Meet 3GPP TS 25.143 ( V 6.2.0 )
    • Modulation Accuracy
      ≤ 12.5%
    • Peak Code Domain Error
      ≤ -35dB@Spreading Factor 256
  • CDMA System
    • Rho
      ρ > 0.980
    • ACPR
      Meet IS95 & CDMA2000
  • I /O Port
    N-Female
  • Impedance
    50 ohm
  • Operating Temperature
    -25ºC~+55ºC
  • Environment Conditions
    IP40
  • Dimensions
    310×270×60mm
  • Weight
    ≤ 4 Kg
  • LED
    • Power LED
      Power Indicator
    • UL LED
      Be lighted when there is phone calling
    • DL 1
      Light is on when Outdoor signal is -65dB
  • LED
    • DL 2
      Light is on when Outdoor signal only -55dB
    • DL 3
      Light is on when Outdoor signal only -50dB
