Cellphone Signal Booster 3G Network – 150 sq. m.

(Vodacom MTN Cell C)

SG-Hip-power
Coverage: Up to 150 sqm
Ideal for:
Provider:
cellc_2010[1]
mtn
vodacom
Frequency:
3G-2100 MHz
Data:
3G
Free Shipping in South Africa
Delivery time: 3-5 Business Days

Benefits and Features:

  • Instant Signal Boost of up to 5 bars
  • CE & RoHS ISO Certified Product
  • Easy Installation
  • Fast Data Download
  • 2-Year Warranty

The GSM 2100 + 3G mobile repeater will increase your 3G signal the moment you install it getting you a 5-bar signal. The booster receives the weak signal and amplifies it in areas up to 150 square meters. The booster is perfect for using in small sized homes as well as offices.

Safe and Secure Shopping
Free Trackable Delivery in South Africa
30-Day Money-Back Guarantee
24/7 Support
10 years in the Mobile Boosters Industry
Over 8700 Satisfied Customers

R 3150

Free Shipping

Overview

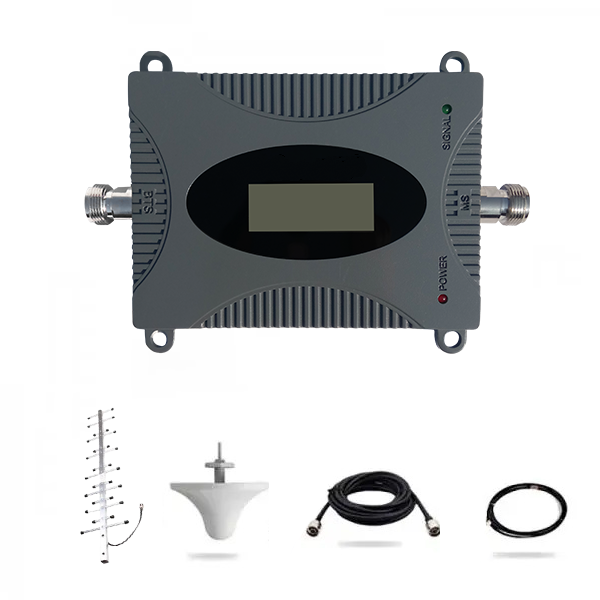

Kit includes:

  • 1x repeater
  • 1x outdoor panel antenna
  • 1x indoor antenna
  • 1x power adapter
  • 15 meters cable
Price Match Guarantee

Product Overview:

Working with the 3 Network the cell phone signal booster GSM 2100 + 3G will also boost your 3G signal as the name itself also implies.

This is a full kit that comes with all the required parts for amplifying your weak signal and releasing you from the stressful interrupted calls. The kit comprises external and internal antennas, a 10-meter coax cable and AC/DC power supply. With all this in mind the model also has a pleasant design that will not make you think of hiding it somewhere from the eye.

What regards the installation then it’s very simple and requires only 15 minutes. You need to put up the external antenna outside and connect it to the repeater with the cable. Then connect the internal antenna and turn on the booster by switching it to the power. The 5-bar signal is guaranteed.

If you are worried about any harmful effects that the booster’s waves might cause then be sure that the waves a signal booster emits have been proven to make no change in the presence of such devices as cell phones and computers.

In case of any problems or questions feel free to contact our team – we are available 24/7 and will guide you through the process making it much easier. This can boost Vodacom, MTN, Cell C.

TECHNICAL OVERVIEW

Coverage (sq. m.) Place to use Operator Frequency

Users Supporting Simultaneously

Up to 150 sq.m. Small boat

Apartment

Small home

Small office

Vodacom (3G)

MTN (3G)

Cell C (3G+4G)

2100 50

Up-link

Down-link Voltage Size

Weight

824~ 829MHz

864~ 894 MHz AC/220V±10% 45~55Hz 124*112*12.5 mm. 0.4 KG.

Technical Specifications:

Frequency range uplink:824-829MHz

Downlink: 869~894MHz

Gain Up link: Gp≥51dB

Downlink: Gp≥53dB

Output Up link :15dBm Downlink: 17dBm Function a) Power supply LED denote

b) Export power LED denote

Port VSWR ≤1.8DB I/O impedance 50Ω/N connector
Noise figure ≤6dB Transmission delay ≤0.5μs
Ambient temperature -15°C~55°C Power supply AC/220V±10% 45~55Hz
Size/weight 124*112*12.5MM/300g Coverage area Up to 300 sq. m

Led Signal Indication explanation:

LED

Status

Definition

Power

Red

Normal

Off

DC power problem


DL (Downlink)

White

No signal received

Solution: Adjust the outdoor installation to get sound signal

Green

Signal received ok but not perfect

Red

Full signal received


UP (Uplink)



Flicker

When there is a call it is normal


Green

Always green means self-excited

Solution: Turn off the booster, adjust the indoor and outdoor antenna again

and try to expand the distance or create some barriers between them.





ALA (Alarm system)



Red

The installation is not correct. For example, the outdoor antenna been stolen

the cable is not connected properly

There are strong input signals or severe self-oscillation, measures must be

Take n(please note that our boosters have auto shut off function so the red color status can only maintain for 5 seconds).

Off

Booster breaks down, or severe self-oscillation leads to auto mute

Re-plug in and check if alarm LED turns Red.

Product FAQ:

How can I check if the booster will work for me?

The simplest way to test if your place is suitable for a mobile booster is to check the signal bars on your phone on the outside of your property.

  • Find the highest point where you could put the antenna (generally the roof)
  • Check how many signal bars you see on your mobile phone at that place.
  • If you have 0 bars – contact us for help to make sure you get a sufficiently powerful option.
  • If you have 1-2 bars signal, a booster will help to increase the signal to 5 bars.

Be aware for 1-2 bars is highly recommended that you upgrade to a more powerful antenna than that provided in the standard kit. You can do this by choosing the upgrade option (Yagi) in the product page.

  • If you have 3 bars, you won't need such powerful antennas and a standard booster kit will be enough to gain 5 bars.
  • Measure your property size to make sure the cable set included in a kit will be enough. We offer extra internal antennas and a cutting tool to help you have an easy set-up.

Should I check the location of my network provider’s nearest tower?

Yes! The standard antenna can accept signal from within 170 degrees. If towers are located on the opposite side of your property than your antenna, you may need to upgrade your system by adding a second antenna so you can receive signal from all locations.

How many users will one booster support?

We sell high-quality products which are all capable of simultaneously supporting multiple devices. The limit for each booster mainly depends on its output power or ‘dBs’. We have provided a list of devices and their support limit converted to dBs below:

Estimations can also be made using this table:

Coverage in square metres Number of supported users
Up to 150 sq m Up to 50 users
Up to 300 sq m Up to 100 users
Up to 600 sq m Up to 150 users
Up to 1500 sq m Up to 200 users

How do I determine the best place to set up my booster?

How to select the best location is described fully in The installation guide. However, if you still cannot find a good place, you can contact us through chat or by email and we will help you with the setup.

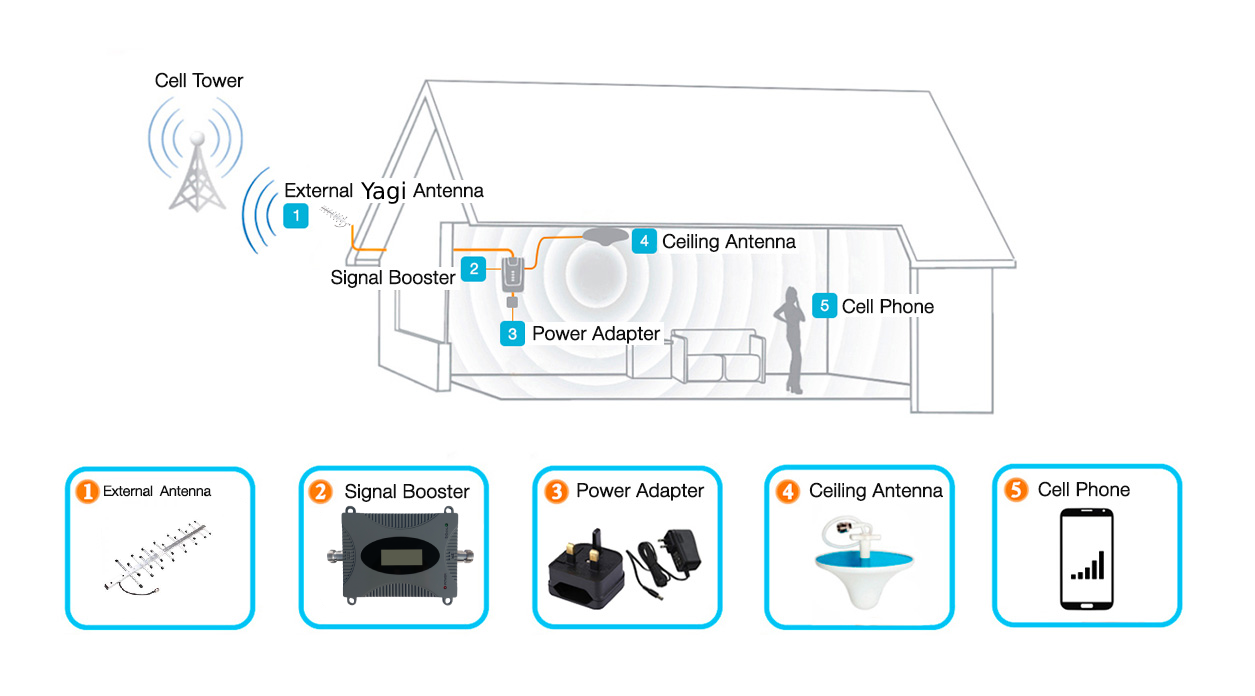

How It Works:

how-it-works
